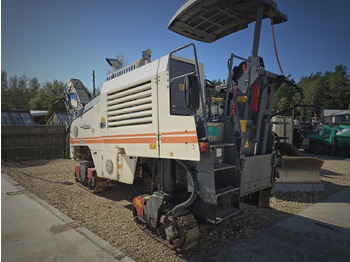

Φρέζα ασφάλτου Wirtgen W120 Fi

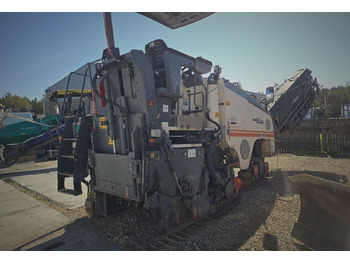

• Cold milling machine WIRTGEN

• Engine Tier: Stage IIIB / Interim Tier 4

• Standard milling width: 1,200 mm

• Theoretical milling depth: 320 mm

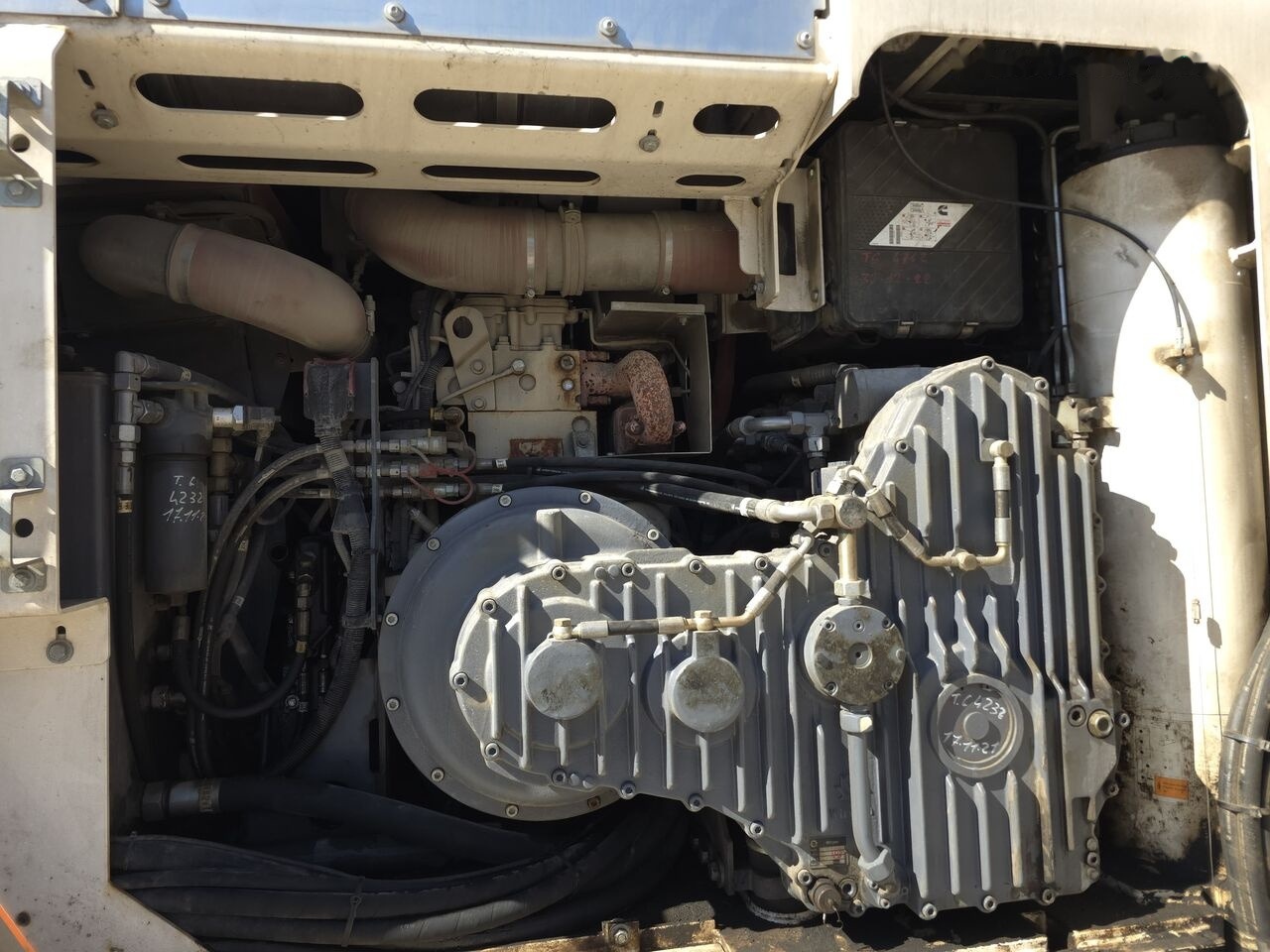

• Engine: 6-CYLINDER DIESEL CUMMINS QSL9 C-300

• Rated engine power 2100 r.p.m.: 224 kW / 300 HP / 305 PS

• Maximum power al 1900 r.p.m.: 239 kW / 320 HP / 325 PS

• Wear-resistant milling drum housing FB1200 FCS

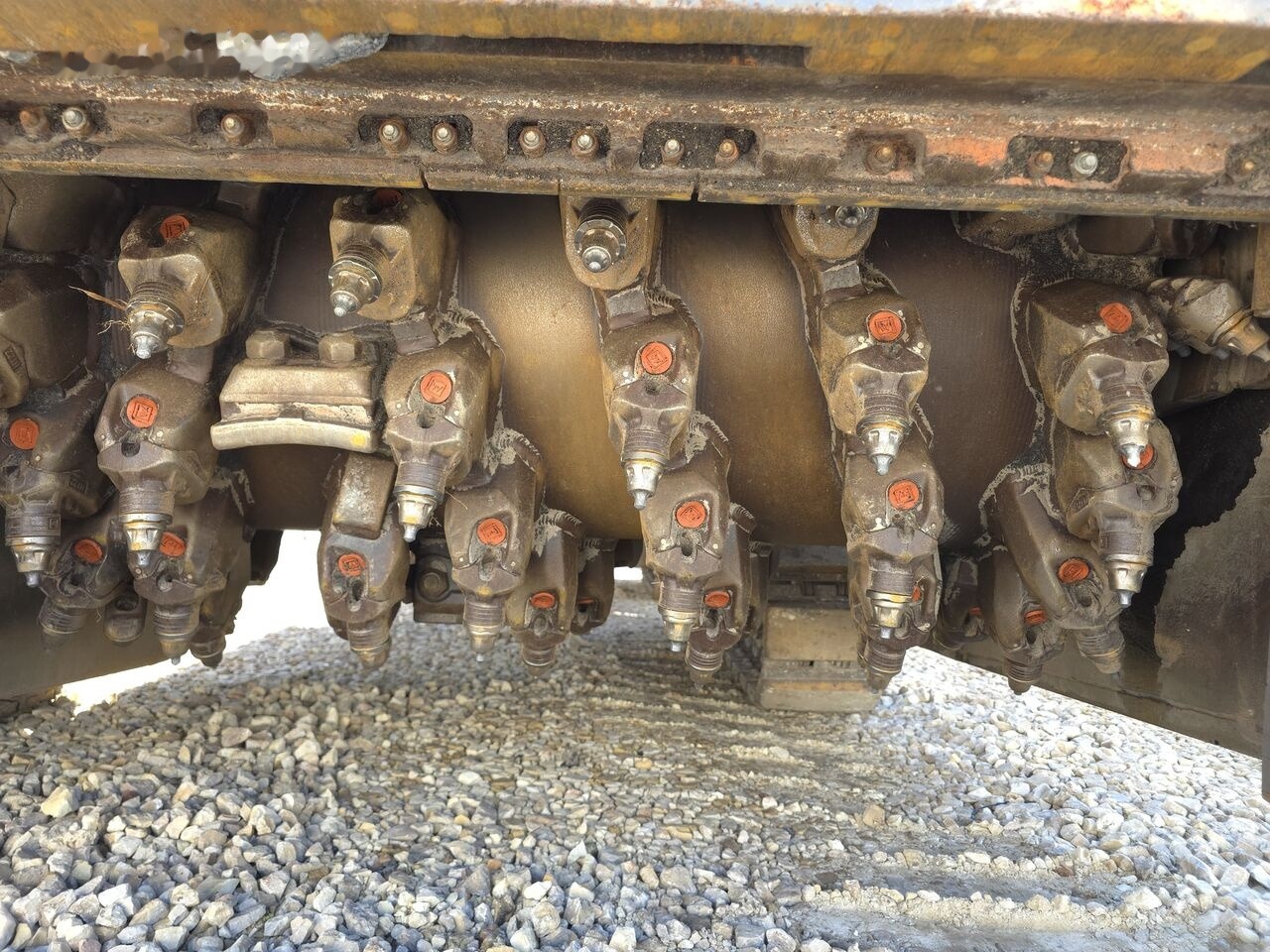

• FCS-milling drum FB 1200 LA 15, with quick-change toolholder system HT22, milling depth max. 320 mm, equipped with 115 RS-picks

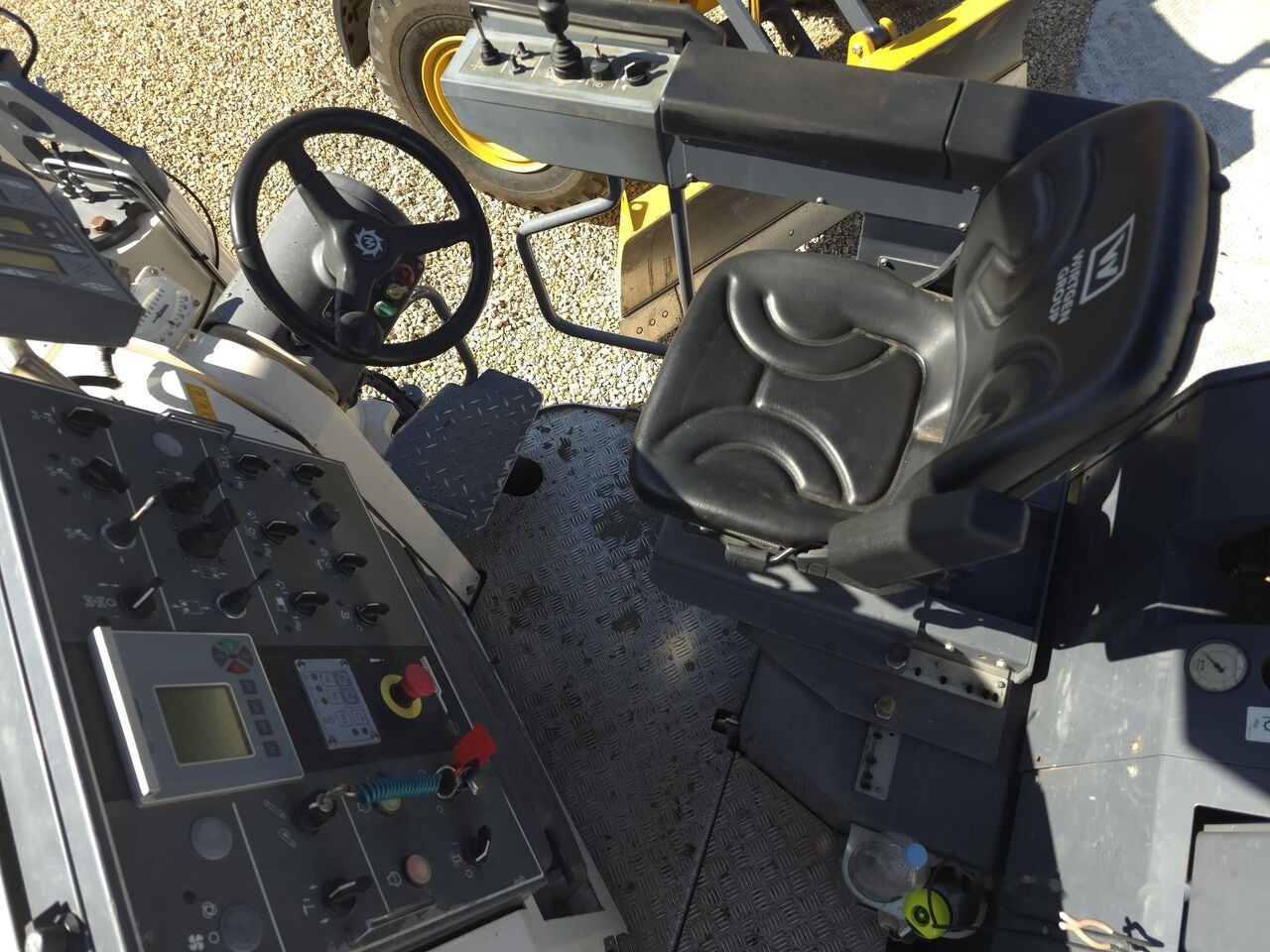

• Flexibly mounted operator's stand with robust, hydraulic lowering weather canopy

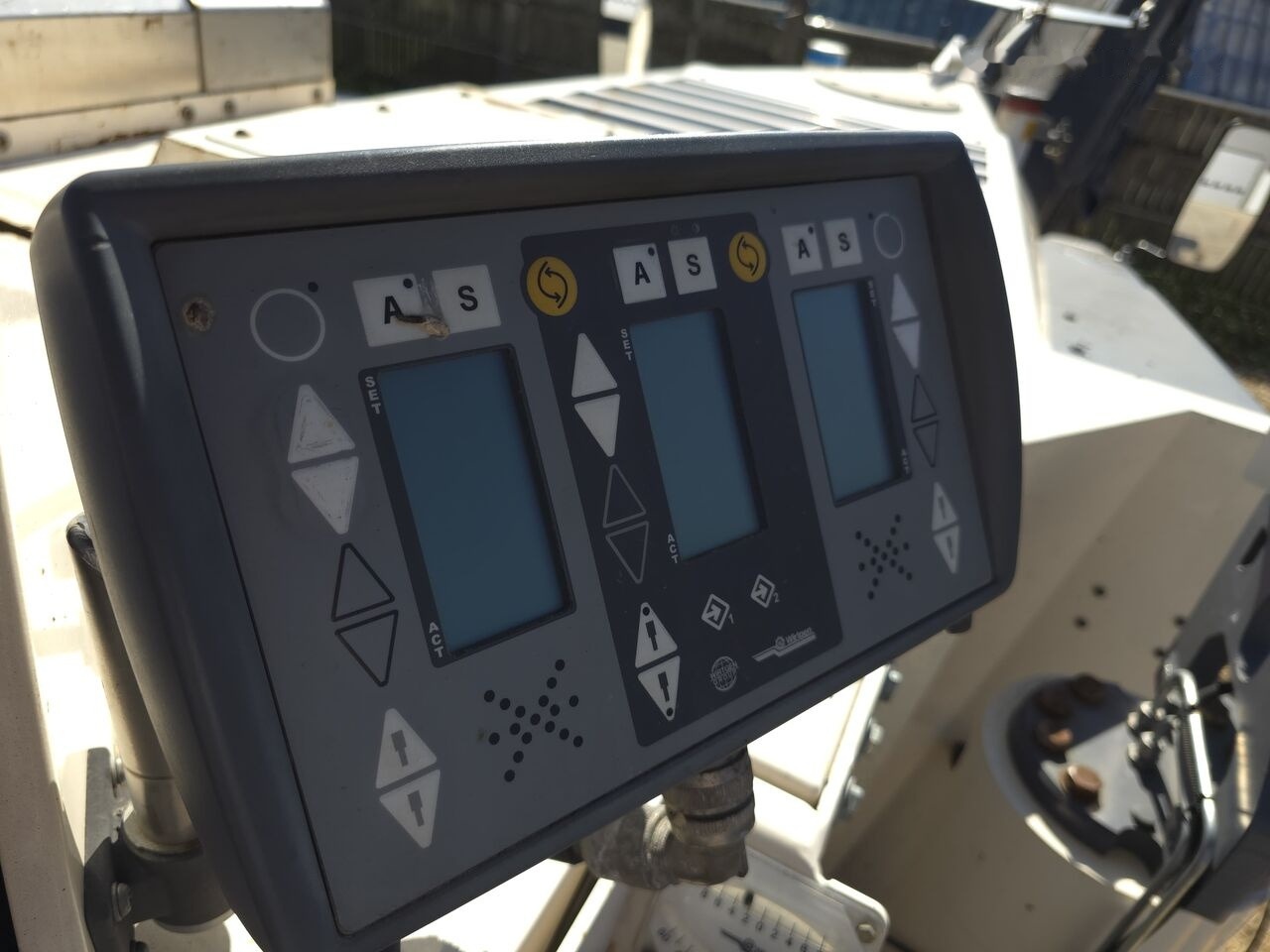

• Milling depth regulation with LEVEL PRO levelling system

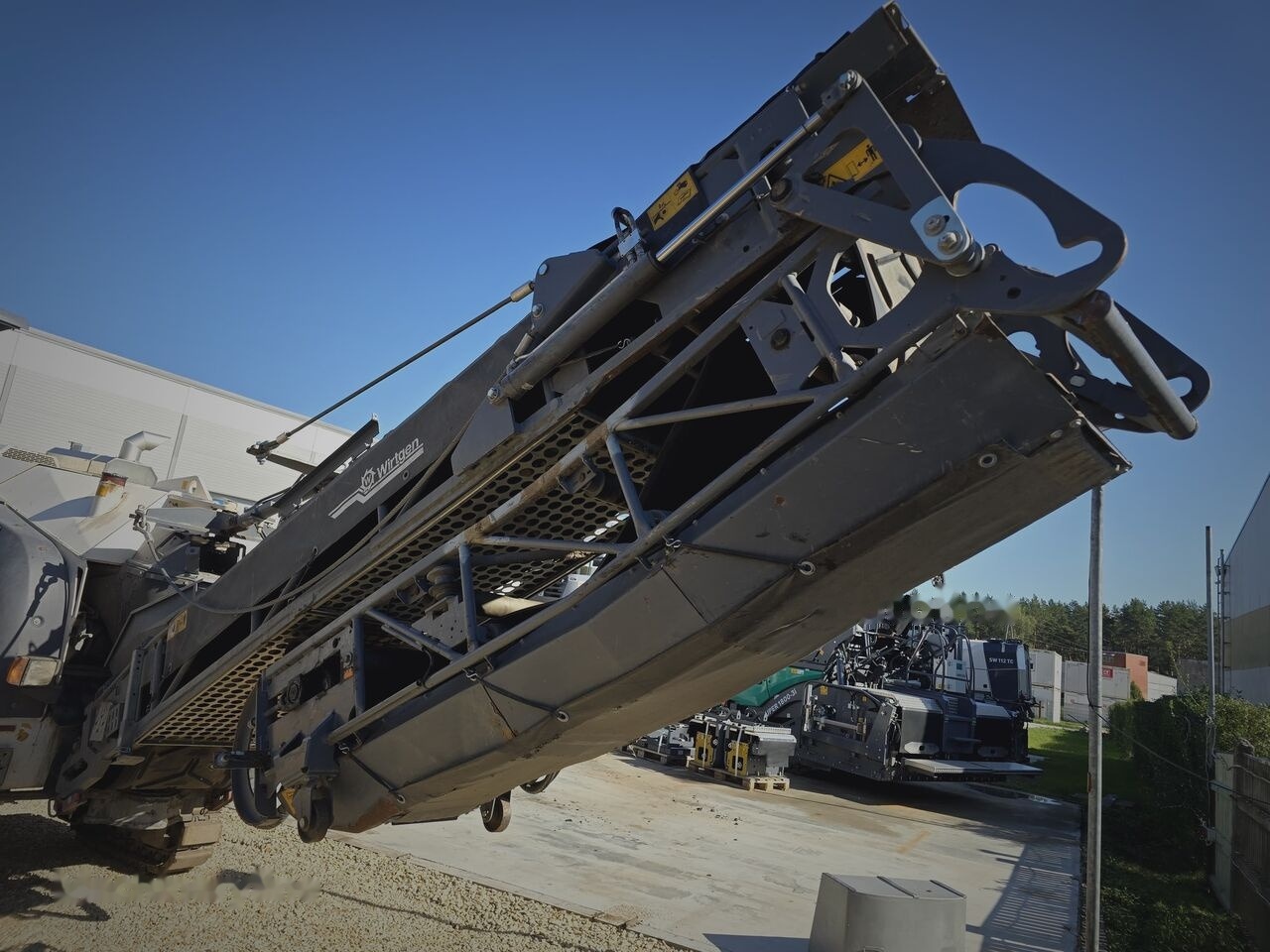

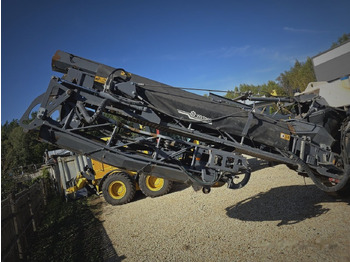

• Robust 8,150 mm long discharge conveyor with conveyor belt system 600 mm and hydraulic folding device for shortening the transport length

• Painted in cream white with orange stripes

• The complete substructure is painted in site grey

• Lighting package with halogen floodlights

• Halogen lighting package 24 V

• Version with 4 crawler units for maximum traction also on surfaces with low adhesion

• The two front crawler units are steering

• Expansion of LEVEL PRO with electronic slope control sensor

• Hydraulically operated water suction and pressure pump for water tank filling with 6 m suction hose

• Expanded lighting equipment with 2 installed front headlights, 2 rear reflectors and 4 turn signals.

• Weight and measures of the machine: Peso Weight: CE *19.63 ton \ Lunghezza Lenght: *10,68 m \ Larghezza Width: 2.25 m \ Altezza Height: *3.00 m
