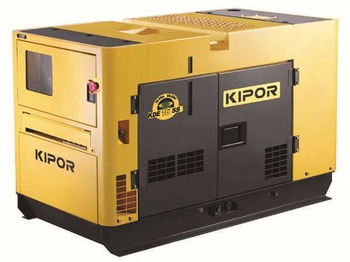

Καινούριο Βιομηχανική γεννήτρια Three-phase Diesel Generator Warranty up to 10 Years Трифазний дизельний генератор Гарантія до 10 Років Agregat prądotwórczy trójfazowy DIESEL Gwarancja do 10 LAT

TESTING at MAXuSA

You can test any of our tractors or machines for 14 days from the delivery date. This will allow you to evaluate the equipment in your working environment.

Short on cash?

No worries!

Order your Generator today and take advantage of LEASING, CREDIT, or Deferred Payment Invoices.

We also offer:

Credit on Statement

No BIK/KRD database checks required

Required own contribution

Generator Technical Specifications

Frequency: 50Hz

Nominal Power:

3-phase: 10kVA/8kW

Single-phase: 3.3kVA/2.7kW

Maximum Power:

3-phase: 11kVA/8.8kW

Single-phase: 3.7kVA/2.9kW

Voltage: 230V/400V

Nominal Current: 13.7A

RPM: 3000rpm

DC Output: -

Hour Meter: Yes

Fuse on control panel: Yes

Alternator Parameters

Model: KPANF3-10.5

Type: Synchronous

Number of Poles: 2

Phases: Three-phase

Control System: Self-regulation and voltage stabilization (AVR)

Power Factor: 0.8cosΦ

Insulation Class: B

Engine Specifications

Model: KM2V80G

Type: V-twin, 4-stroke, 2-cylinder

Cylinder Bore x Stroke: 80x79mm

Engine Capacity: 794cm³

Compression Ratio: 23:1

Nominal Engine Power: 12.5kW

Cooling System

Type: Liquid

Coolant Capacity: 2.9L

Oil Specifications

Lubrication: Pressure system

Oil Type: SAE10W-30, SAE15W-40

Oil Tank Capacity: 2.27L

Oil Sensor: Yes

Oil Consumption: -

Starting System

Start Type: Electric

Starter Power: 12V, 1.4kW

Max Charging Current: 12V, 20A

Battery Capacity: 12V, 36Ah

Fuel Specifications

Fuel Type: Diesel (ON)

Max Fuel Consumption: ≤ 3.5L/h

Fuel Tank Capacity: 26L

Runtime on Full Tank: 7.4h

Control Panel

Model: KP310

Technical Dimensions

Structure: Enclosed

Dimensions (LxWxH): 1350x650x760mm

Weight: ≤ 310kg

Operating Hours: Only 362 hours
