Leasing QINGDAO PROMISING 2.0T Small Articulated Dumper DP20

2.0T Small Wheel Dumper

HS Code: 8704109000

Container Loading: One 20-foot container can fit one unit; one 40-foot HQ container can fit 3-4 units

Application:

A dumper is a vehicle designed for carrying bulk material, often on building sites. Our compact dumpers are designed for any application from conventional building construction and landscaping to tunnel construction and demolition work. This three-way dumper provides an ideal solution as multi-function dumper when considerable manoeuvrability is required. They are ideal vehicles for transport and distribution of materials at building sites and for road works.

Feature:

1. Articulated joint

2. Excellent product quality

3. Durable and easy to service

4. Impressive turning radius for precision and efficiency

5. User-friendliness combined with excellent driver comfort

6. Power Swivel skips enable effective placement of load either side

7. Available with closed cab and heating

Technical Specifications:

1. Model: DP20

2. Payload: 2000kg

3. Operating Weight: 2500kg

4. Bucket Capacity: 1.15CBM

5. Max. Tractive Force: 35KN

6. Max. Breakout Force: 28KN

7. Max. Gradeability: 30Deg.

8. Overall Dimension (L x W x H): 3950x1590x2450mm

9. Min. Turning Radius: 4600mm

10. Engine Model: CHANGCHAI ZN390Q

11. Engine Type: Three-cylinder, In-line, Water-cooled, 4-stroke Diesel Engine

12. No. of Cylinder-bore/Stroke of Engine: 3 – 90 x 95mm

13. Engine Power: 25 kW/2400rpm

14. Torque Converter: YJ-240 Hydraulic Torque Converter

15. Gearbox Mode: Countershaft Power-shift

16. Gear Shift: 2 Forward, 2 Reverse

17. Max. Speed: 17km/h

18. Main Reducing Mode: Circular Arc Bevel Gear, Single Stage

19. Decelerating Mode: Single Stage Planetary Type

20. Wheel Base: 2410mm

21. Wheel Tread: 1300mm

22. Min. Ground Clearance: 240mm

23. System Working Pressure: 16Mpa

24. Hydraulic Tank Capacity: 25L

25. Fuel Tank Capacity: 26L

26. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

27. Parking Brake: Hand Lever Flexible Shaft Controlled Externally Contracting Drum Brake

28. Tyre Type Specification: 8.25-16-14PR

29. Front Tyre Pressure: 0.22Mpa

30. Rear Tyre Pressure: 0.18Mpa

Optional EURO5 Engine: 18.4kw CHANGCHAI ZN390BT Engine

Optional Wider Tyres: 31x15.5-15PR

Note:

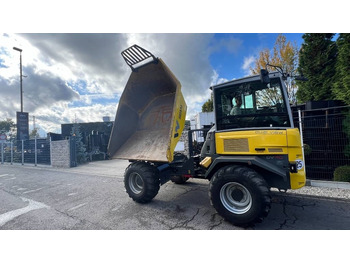

1. All photos are for reference only. Machines shown may include optional parts.

2. Available optional parts include Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Enclosed Cabin.

3. All specifications and design characteristics are subject to change without prior notice.
