Leasing XCMG MM10-15 Hydraform Interlocking Brick Machine Block Making Machine in Nigeria Kenya South Africa

XCMG MM10-15 Hydraform Interlocking Brick Machine Block Making Machine in Nigeria Kenya South Africa

Processing: Brick Production Line

Warranty: 1 Year

Dimension(L*W*H): 9800x2300x2600mm

Machinery Test Report: Provided

Core Components: PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox

Brick Raw Material: Cement

Brick size: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

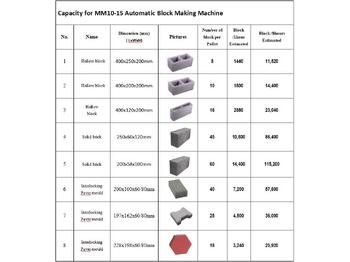

Production Capacity (Pieces/8 hours): 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours

Key Selling Points: Long Service Life

Weight (KG): 11000 kg

Method: Autoclaved Aerated Concrete

Vibration motor: Electrical

Applicable Industries: Building Material Shops, Construction works

Place of Origin: Jiangsu, China

Brand Name: XCMG

Warranty of core components: 1.5 years

Video outgoing-inspection: Provided

Condition: New

Showroom Location: Canada, Turkey, United Kingdom, United States, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Morocco, Kenya, Chile, UAE, Colombia, Algeria, Sri Lanka, South Africa, Ukraine, Japan, Malaysia

Voltage: 21Mpa

Marketing Type: Ordinary Product

Supply Ability: 10000 Unit/Units per Year

Pallet Size: 1100x950mm

Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)

Automatic: Yes

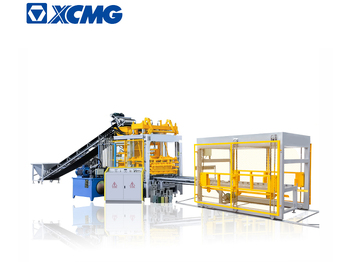

MM10-15 block making machine is one of the most popular machine for hollow block, solid block,interlocking paver, curb stone production in the market.

The pallet size for MM10-15 is 1100x950mm or 1100x900mm according to the size of concrete products to be made by customer.

This powerful concrete brick, block and paver making machine is capable of producing 8inch hollow block at 10pcs per drop,around 14000pcs per shift at 8 hours.

For making rectangular paver at 200x100x60mm,the output is 36pcs per drop,at 1000 square meter per shift.

MM10-15 is a well constructed block making machine features Schneider electrical parts, Japanese Yuken hydraulic valves,SIEMENS motor for hydraulic station to ensure the stable performance of plant, and the SIEMENS PLC in control cabinet,with Two SIEMENS vibration motor,ensuring the best compaction for producing the high quality brick,blocks and paver.

 Vibration System

Vibration table consists with dynamic table and static table. When vibration begin,dynamic table vibrate,static table remain static.The structure is designed to ensure the amplitude of the vibration table, so as to ensure the high quality of concrete products.

Feeding System

Motor use SIEMENS motors or other Famous brand Chinese motor, which control two mixing shafts. Feeding frame, bottom plate and mixing blade are made of high-duty steel, the location of bottom plate can be adjusted. The raking teeth is a complete piece bolted to the feeding cart shaft,easy to be changed during maintenance.

Hydraulic Station

Hydraulic pumps and hydraulic valves adopt international brands Japanese YUKEN Brand,with double proportional and single proportional valve as well as relief valve. The flow and pressure for the hydraulic can be adjusted according to different concrete block production.Tube uses "Flange Connection", convenient installation and maintenance. Multi-point pressure detection point, convenient detection. Digital temperature and blockage alarm function. Motor and pump connection, flange connection, good coaxial
