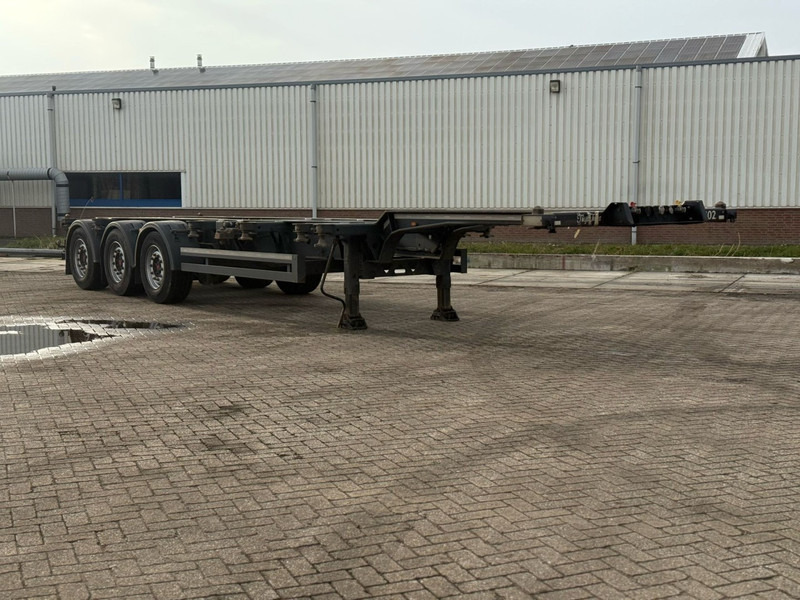

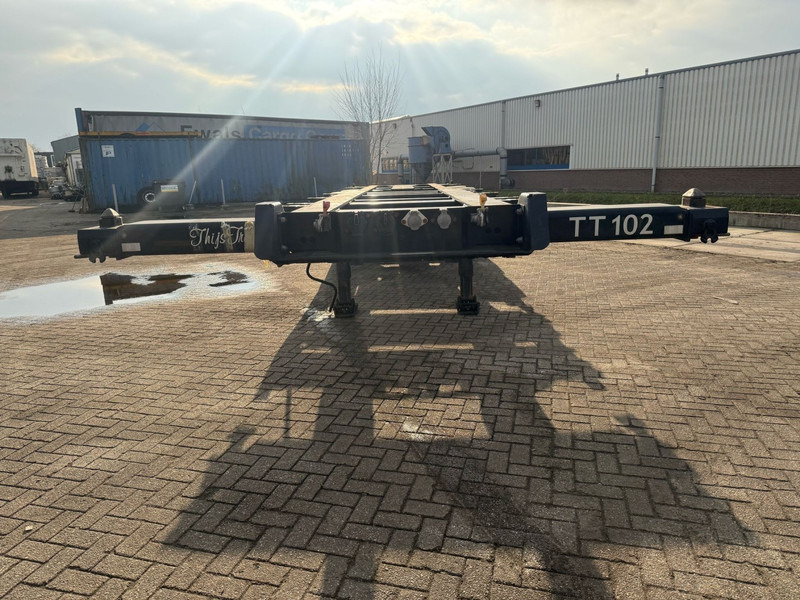

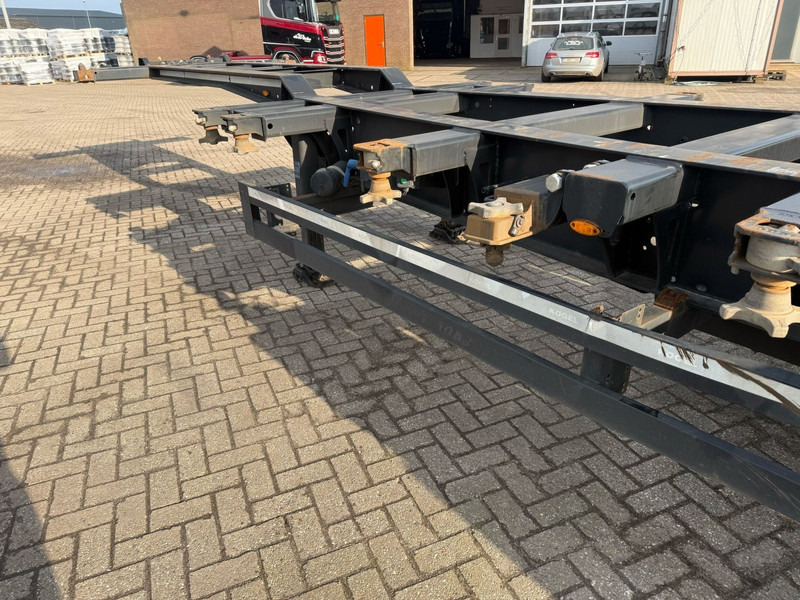

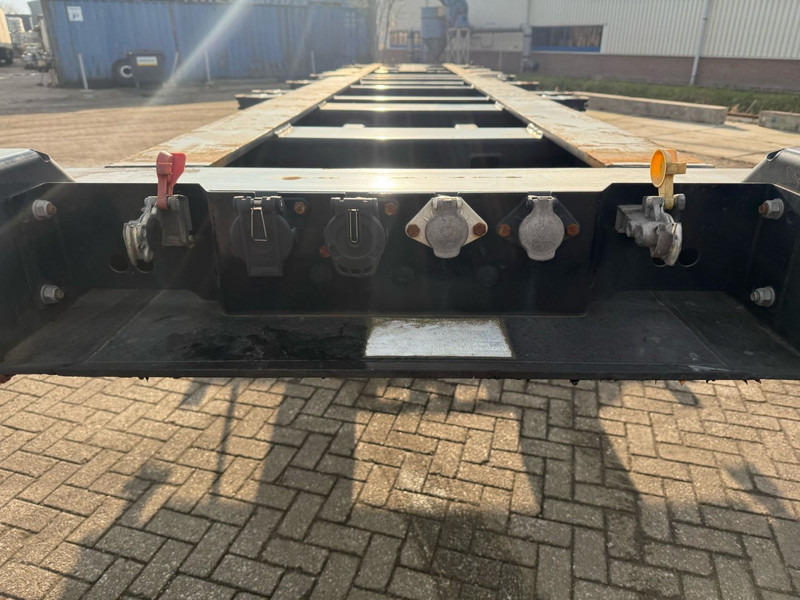

Kögel PORT 40 SIMPLEX 20 CONTAINER CHASSIS, NL TRAILER, 2020
12 900EUR
Τιμή χωρίς ΦΠΑ
- ≈ 15 019 USD

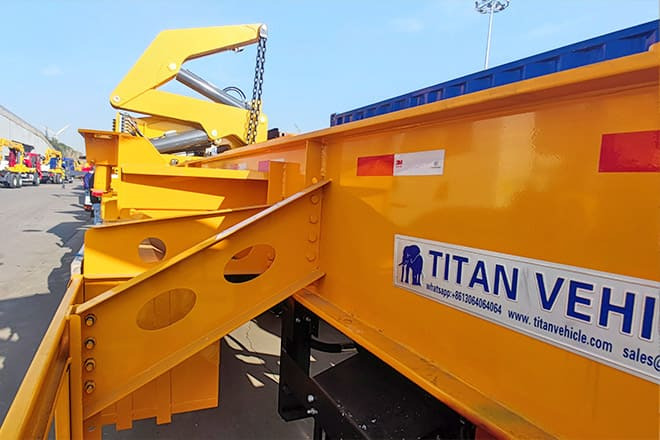

XCMG 40 Ton Sidelifter Container Trailer for Sale in Guyana
Επικαθήμενο μεταφοράς εμπορευματοκιβωτίων/ Κινητό αμάξωμα OZGUL 40 FEET SKELETAL TYPE CONTAINER CARRIER TRAILER 40
Δημοσίευσε: 5χρ 11μήνες
Δημοσίευσε: 5χρ 11μήνες
RACK
It is manufactured in 20’30’40’45’ FEET container sizes
Strengthened “I” section centre members are welded by a submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate
These racks are supported by binding with axle beams against being twisted with each other
PORTABLE CONTAINER SIZES
1x45’
1x40’
1x30’ centre Or 1x20’ centre
2x20’
CONTAINER LOCK
12 or 14 locks
AXLE SHAFT
3 axle shafts with the capacity of 12 tons are used
There are brake shoes and heavy brake levers suitable to TSE norms
SUSPENSION
Parabolic double deck Z springs and dashpots
ELEVATING FRONT AXLE SHAFT
Remote operated elevating system for front axle shaft in cabin
TIRES AND RIMS
385/65 R22,5 tires 6+1
ELECTRICAL EQUIPMENT
It is suitable for SAE standards and Tüv regulations
Electricity is provided by 7 pin plug from vehicle
There are necessary traffic advisory and stoplights on both sides
There are backlights
brake lights
license plate lamps
trailer reflectors and orange warning lights on the sides
BRAKE EQUIPMENT
71/320/ewg ff brake system according to EC standards
Automatic slacks
4 spring brake chambers and 2 service brake chambers
RSS that provides safe driving system against 2S / 2M EBS and rollover (Balance Control System)
Air leaks in trailer are blocked by Sweden patented Ruffels union system
KING-PIN
Steel king-pins which is 2” according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used
LEGS
Two speed
telescopic
mechanical conveyor legs
with the capacity of 24 tons
PAINT
Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint
COLOR
It will be specified according to customer request
STANDARD ACCESSORIES
Multi-piece plastic fenders that covers trailing axle tires
1 plate tool box
Control Panel(Mob
air clock
access ramp lever)
Plastic water tank
Roller spare tire conveyor
Aluminum bike impact absorber
Mounting and mounting space
OPTIONAL SPECIFICATIONS
European axle shaft group and all kind of equipments
Aluminum rims
Fire extinguisher closet and fire extinguisher tube
Tire mark according to request
RAL color codes according to request
