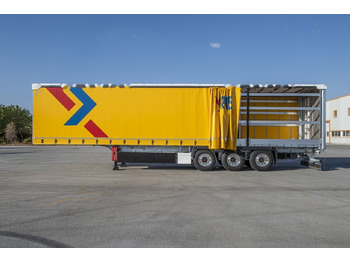

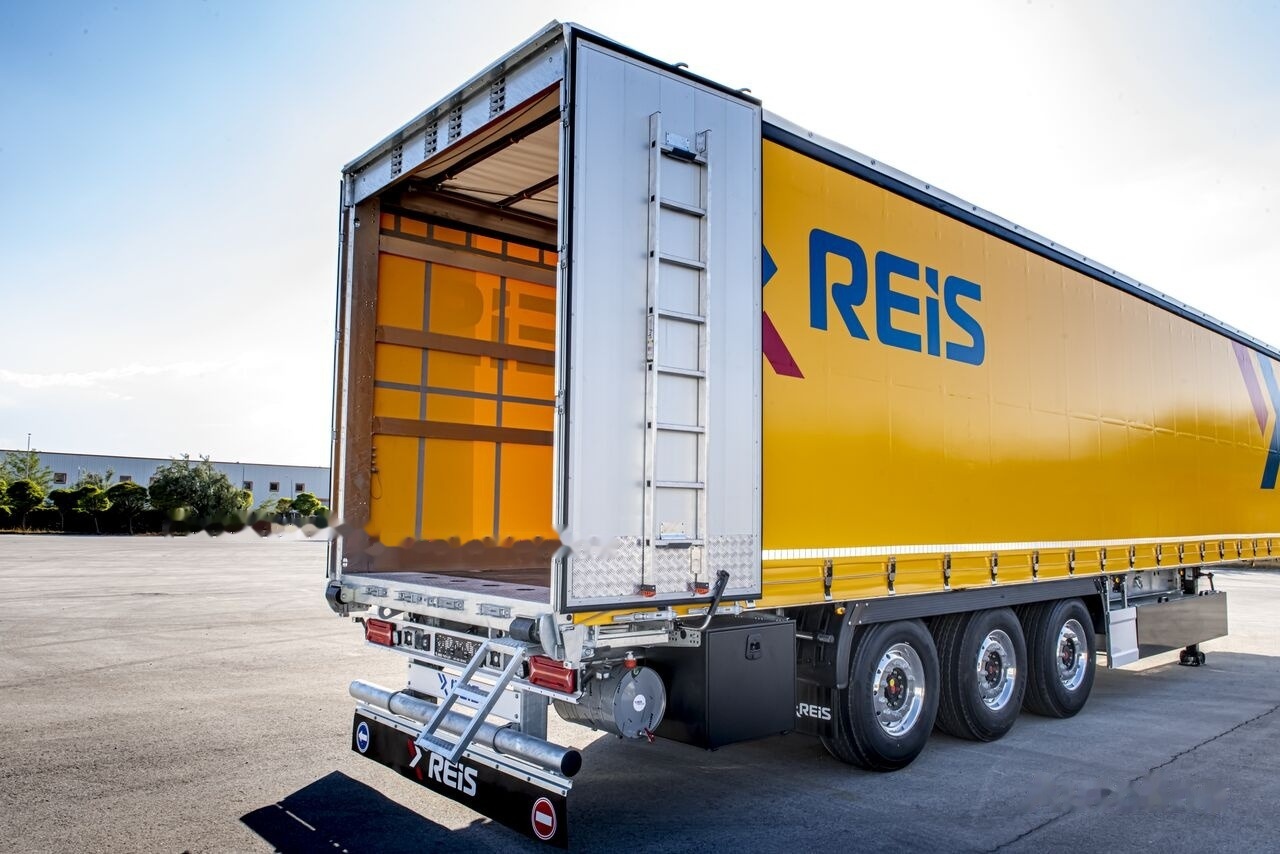

Καινούριο Επικαθήμενο κουρτίνα Reis Treyler Premium Curtain Trailer

Contact us for optional features and price information.

TECHNICAL SPECIFITACIONS OF CURTAINSIDER OPTIMA SEMI-TRAILER

Truck Tractor Type

— 4x2 Truck Tractor

Chassis

— ST 52 Material “I” profile it is produced with gas welding, it has high quality strength, Standard Chassis Type, produced according to the 98/91 EEC standards

Inner Lenght Dimension

— Length 13.600 mm mm x Width 2480 mm x Height 2820 mm

Over All Lenght Dimension

— Length 13.600 mm mm x Width 2550 mm x Height 4050 mm

Platform

— Phenolic waterproof plywood plate (30 mm) with rings and iron plate

Container twist lock

— Without Container Locks

King Pin

— 2” or 3 ½” king pin according to the 94/20 EEC

—Pin detachable from below made by SAE standards 8 bolt type.

Axles

— 3 x 9.000 kg carrying capacity SAF brand Disc Brake Type

— First axle is lifting

— Third axle is steering

Distance Between Axles

— 1320 mm

Brakes & Suspension

— Air Suspension

— EBS Brake System KNORR or WABCO brand, 4S3M RSS Stability system RSS according to 71/320 EEC and 2002/78

EC standards

— Automatic Slack Adjuster

Landing gear

— Double Speed,

— 24000 kg carrying capacity OMS Brand

— Mechanical Landing Gears

Rear Bumper

— Suitable 70/221 / AT-version of the rear bumper

Tire Chock

— Carriers with 2 unit wheel chock

Tires and Rimes

— 6 PCS 385 65 R 22,5 Single tire type

—Goodyear, Bridgestone, Pirelli or Equivalent brand

— 120 offset 22,5 x 11,75 Rim, 280,8 x 335 x 10 wheel stud M 22 x 1,5

Mud Cover

— 6 Units full plastic mudguards fited with galvanized steel holders.

Spear Wheel Carrier

— 1 piece tire carrier Reducer type

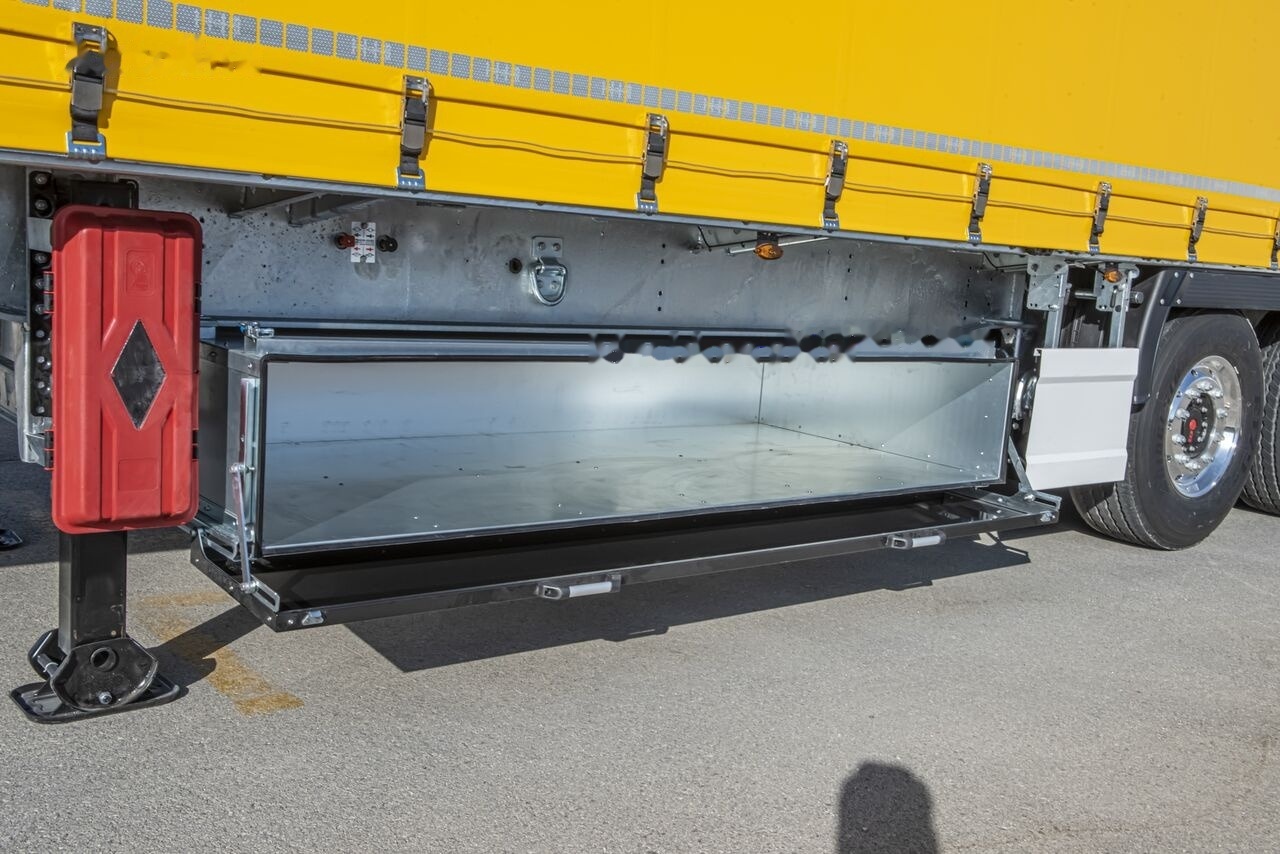

Tool Box

— 1 pcs Metal Tool Box 150 cm

Paint

— Steel Material surface are cleaned by grit metal and send, which is shot blasted on the surfaces of the metal.

— 2 Floor Epoxy primers are made and final paint with BLACK, GRAY or GALVANIZED Color

Electrical System and Lightening System

— 3 unit’s amber-colored lights placed on the both sides

— Park lamps at the rear side of the vehicle (with a protective grill)

— License plate lamps,

— Reflector triangles,

— Flame proof electrical system

— 2 X 7-pin and 1 x 15-pin electrical socket.

Equipment (Tools)

— Tool box keys

— Ro-Ro Lashing Rings

— Document holder

— Fire Extinguisher Box, Rear Ladder, Forklift barriers, Rear Bumper,

Optional Accessories

— According to the demand optional accsesories will be added in the proposal

CURTAIN SUPERSTRUCTURE

Roof System

— Aluminum rail profile roof system suitable for Custom Clearance

— Lifting roof

— Sliding roof

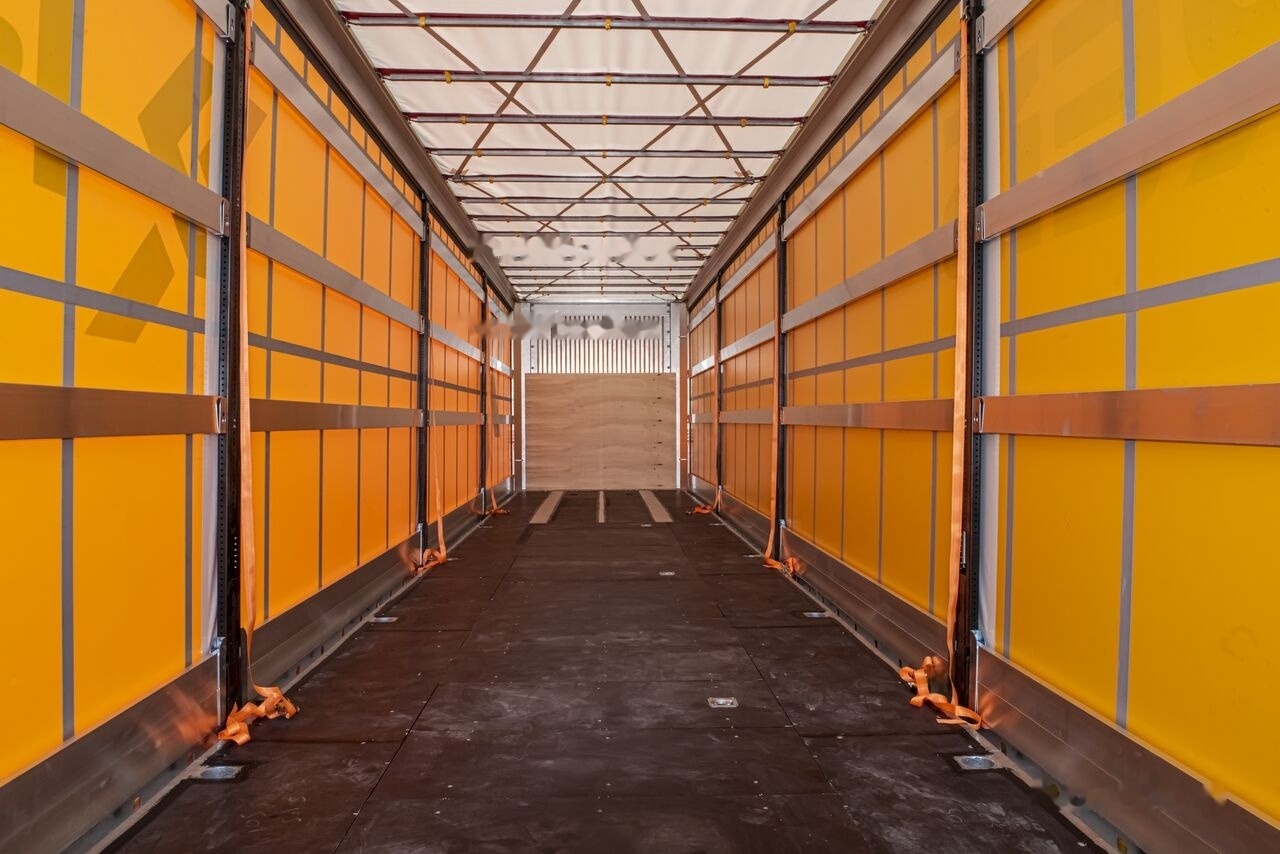

Curtain System

— Provided with a tarpaulin woven at 9x9 grade, weighing 680 g/m2, having fracture strength of 3500 N/S and 350 N tearing resistance.

— Code XL

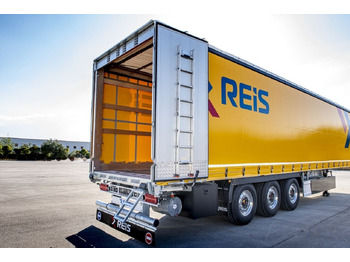

Rear Door

— Two side rear doors with recessed locks

Side Protectors

— Side preventive protectors made from high strength material complied with 70/156 EEC standards
