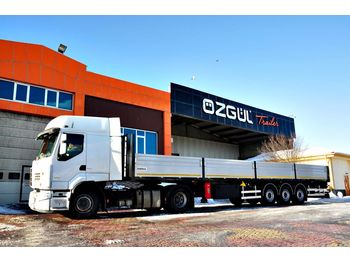

Επικαθήμενο πλατφόρμα/ Καρότσα OZGUL SEMI TRAILER WITH SIDE DOORS

EBD

Aluminum side walls

SUPERSTRUCTURE

Flat base on the front in 9.000 mm-13.600 mm sizes

also it is 2,440 mm long inside and 2550 mm long outside

Platform has 4 or 5 caps and they had been installed on the rack

Caps are connected to each other externally; they are 800-900 mm high

Floor will be covered with one row of plate and one row of wood

Periodically placed "Z" axle beams exist in the floor

RACK

Strengthened “I” section centre members are welded automatically by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate

These racks are supported by binding with axle beams against being twisted with each other

AXLE SHAFT

3 axle shafts with the capacity of 12 tons

are used

There are brake shoes and heavy brake levers suitable for TSE norms

SUSPENSION

Parabolic double deck Z springs and dashpots

ELEVATING FRONT AXLE SHAFT

Remote operated elevating system for front axle shaft in cabin

TIRES AND RIMS

385/65 R22,5 tires 6+1

11,75 x 22,5 rims 6+1

ELECTRICAL EQUIPMENT

It is suitable for SAE standards and Tüv regulations

Electricity is provided by 7 pin plug from vehicle

There are necessary traffic advisory and stoplights on both sides

There are back lights

brake lights

license plate lamps

trailer reflectors and orange colored warning lights on the sides

BRAKE EQUIPMENT

71/320/ewg ff brake system according to EC standards

Automatic slacks

4 spring brake chambers and 2 service brake chambers

RSS that provides safe driving system against 2S / 2M EBS and rollover (Balance Control System)

Air leaks in trailer are blocked by Sweden patented Ruffels union system

KING-PIN

Steel king-pin which is 2” according to DIN 74080 standards and 3½” 42 CRMO4 according to DIN 74083 standards are used

LEGS

Two speed

telescopic

mechanical conveyor legs

with the capacity of 24 tons

PAINT

Rack and superstructure are painted in paint drying oven by Washing + Sanding + 2+1 coat Acrylic Paint

COLOR

It will be specified according to customer request

STANDARD ACCESSORIES

Multi-piece plastic fenders that covers trailing axle tires

2 plate tool boxes

Control Panel(Mob

air clock

access ramp lever)

Plastic water tank

1 basket stare tire conveyor

Aluminum bike impact absorber

Mounting and mounting space

OPTIONAL SPECIFICATIONS

European axle shaft group and all kind of equipments

Import plates(Domex-Hardox)

NPI Section centre side member

Floor is completely MDF or completely covered with plate

Aluminum rims

Double spare tire conveyor

Axle shaft elevator addition

Lift tampon

Fire extinguisher closet and fire extinguisher tube

Additions on caps according to request

Tire mark according to request

RAL color codes according to request
