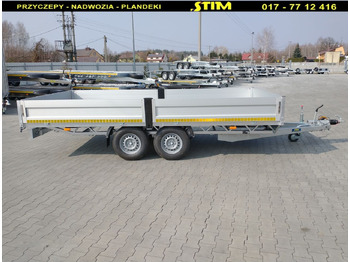

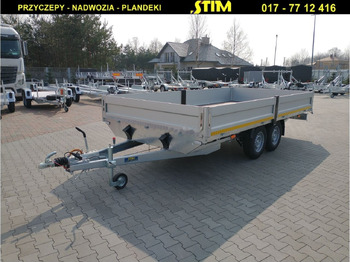

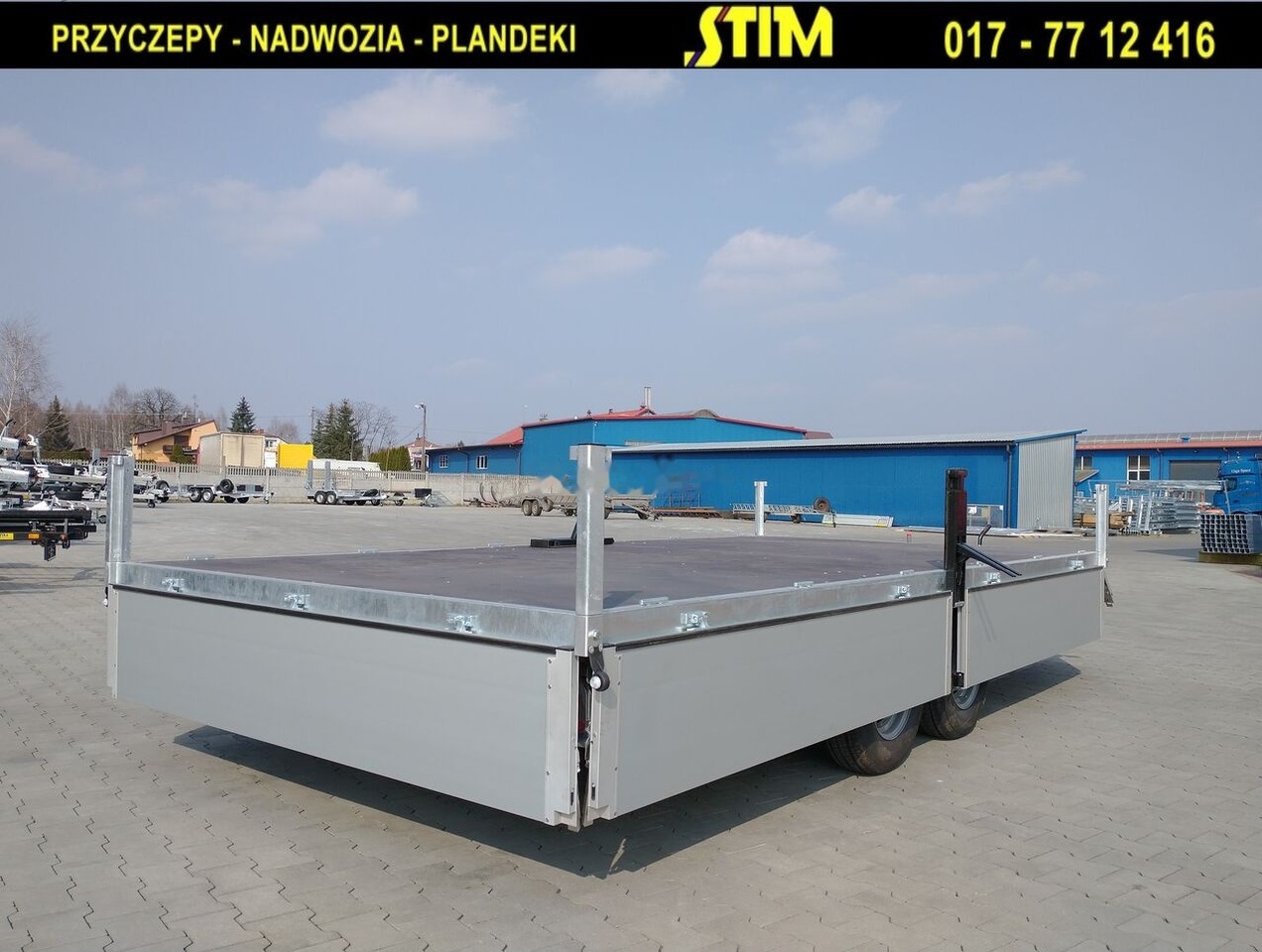

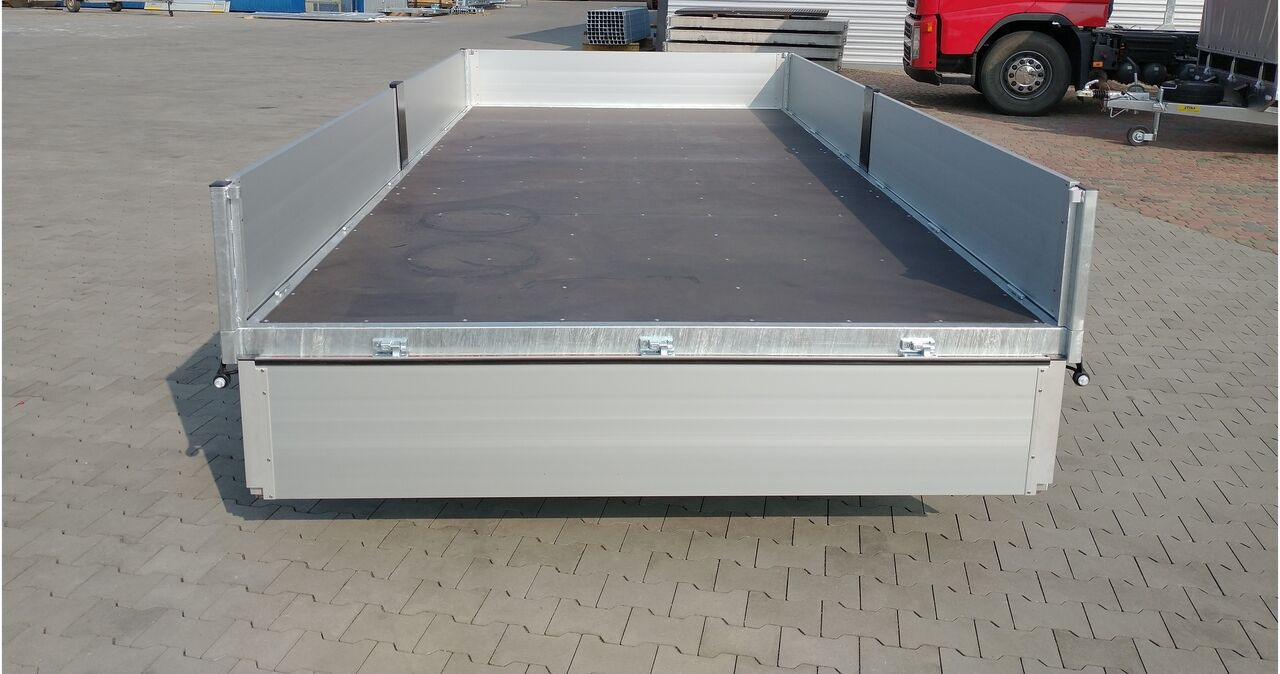

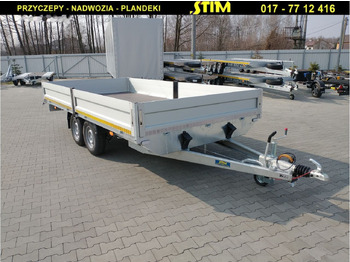

Καινούριο Τρέιλερ πλατφόρμα/ Καρότσα Stim S22

TECHNICAL DATA

- Internal dimensions: 450cm x 220cm x 40cm

- Permissible total weight of the trailer: GVM up to 3500 kg

- Own weight: approx. 850 kg

- Number of axles: 2 braked axles 1800 kg by the German company KNOTT

EQUIPMENT

- 2 braked axles of the Neidhartd type based on torsion shafts of the German company KNOTT with a load capacity of 1800 kg each

- wheels under the loading surface, the floor at a height of about 72 cm

- tubeless wheels, size 185R14C or 195 / 50R13C

- spare wheel size 185R14C

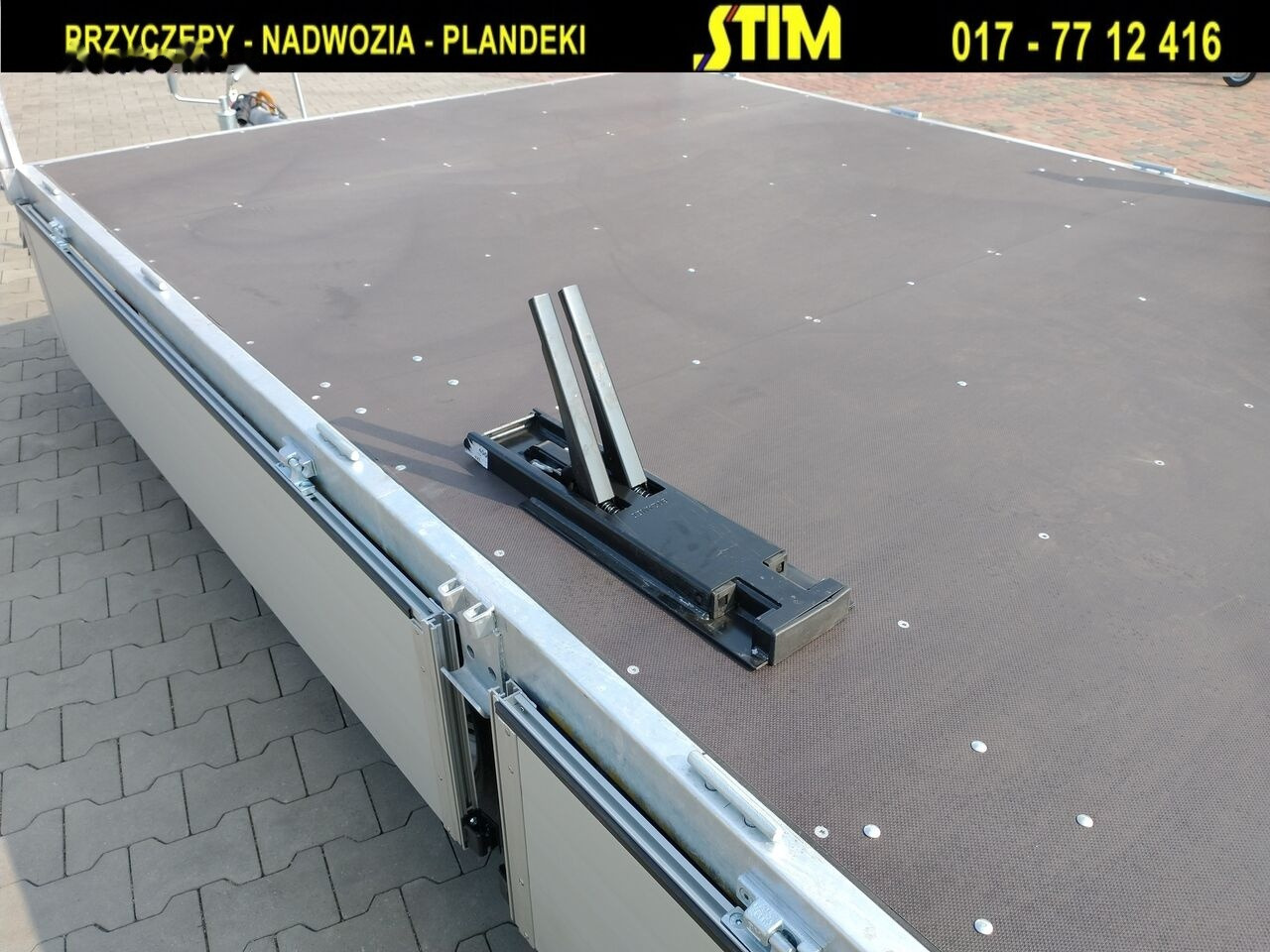

- floor made of 15mm thick, anti-slip waterproof plywood

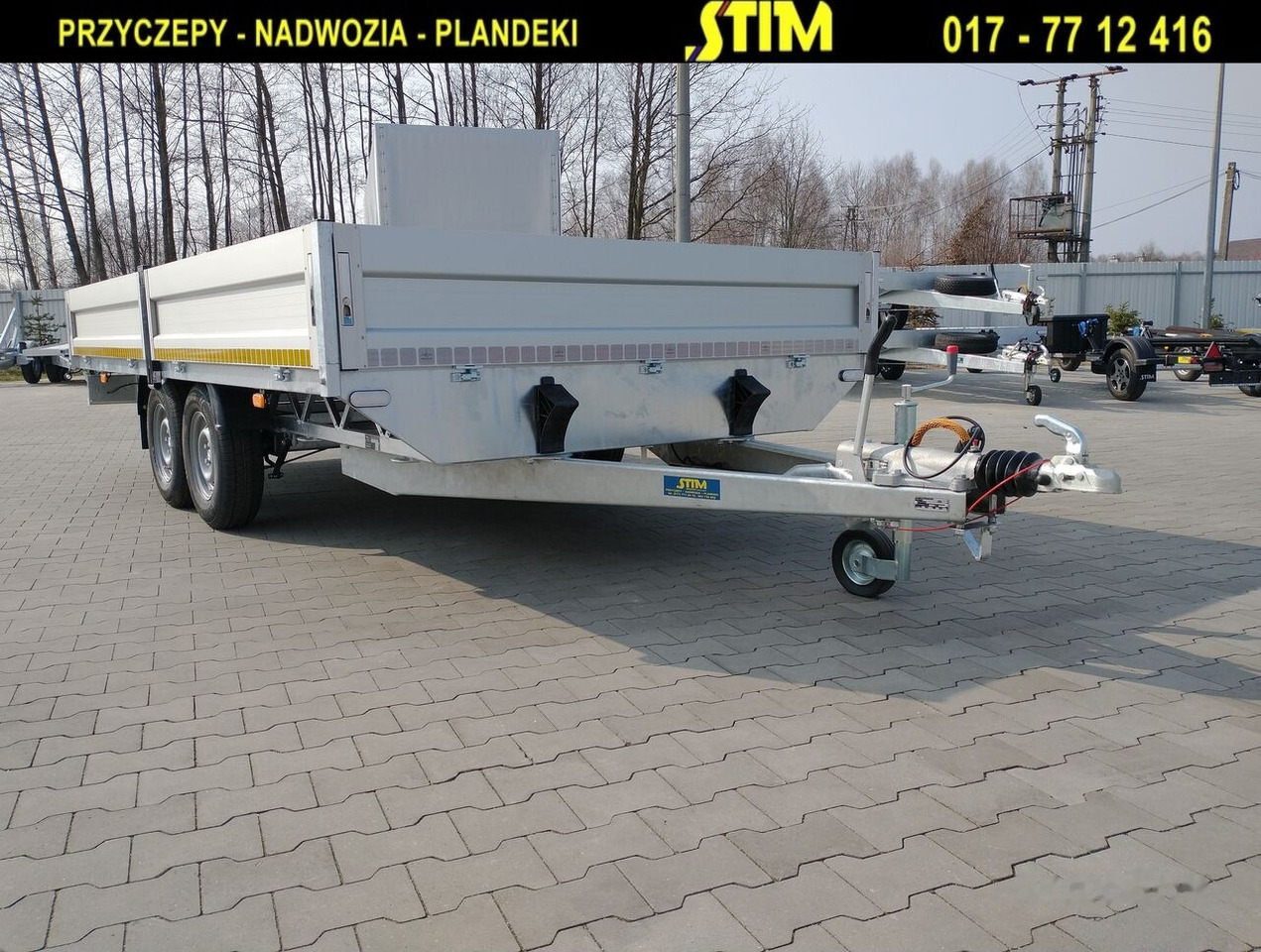

- KNOTT overrun device up to 3500 kg with a ball hitch

- hook at a height of about 46 cm

- aluminum sides, opened to four sides, divided on the side with a central post, removable posts (quick disassembly down to the platform level)

- frame made of steel elements, reinforced truss - hot-dip galvanized

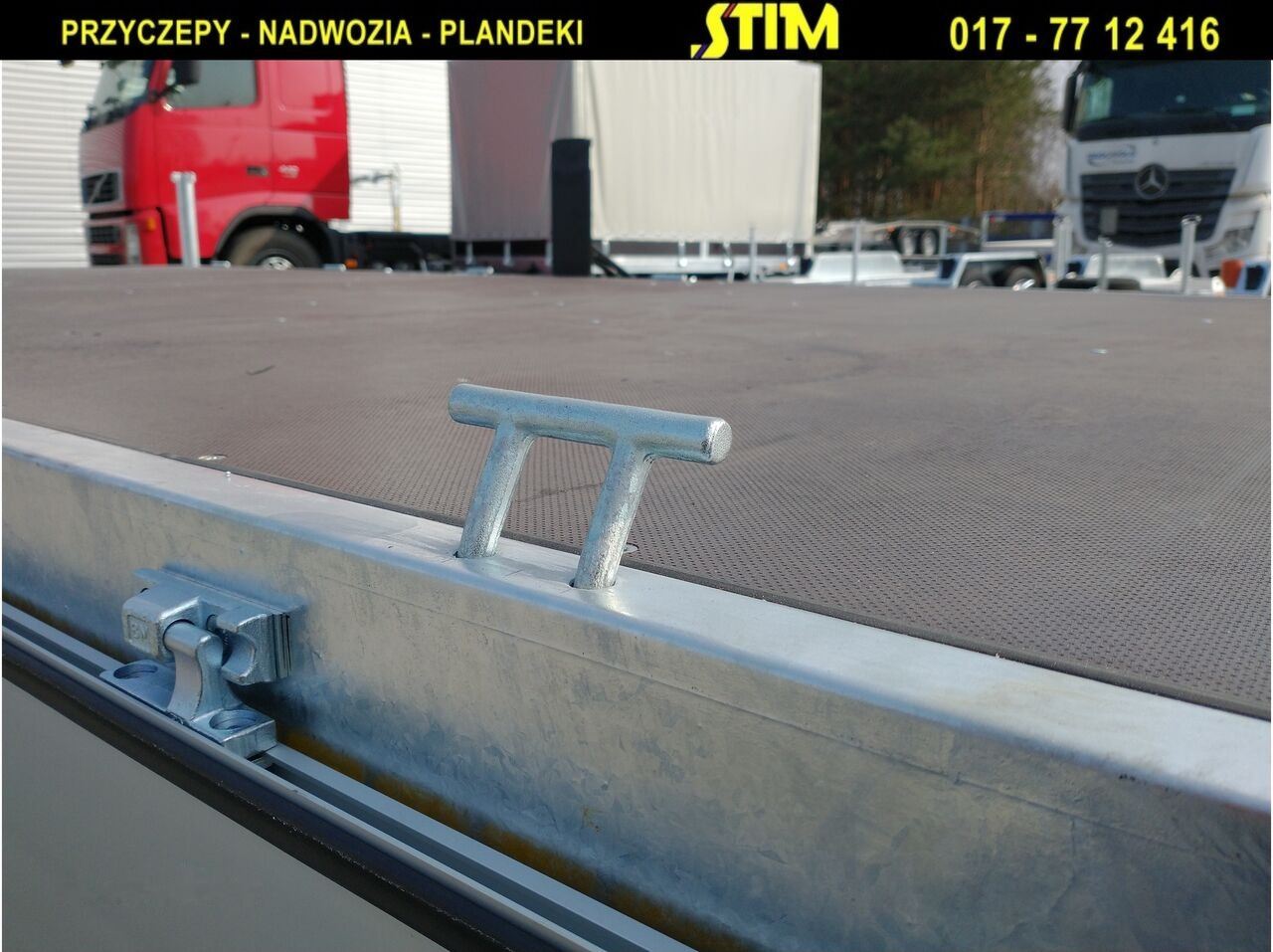

- belt holders on the side every 50-70 cm

- front maneuvering wheel

- securing wheel chocks 2 pcs

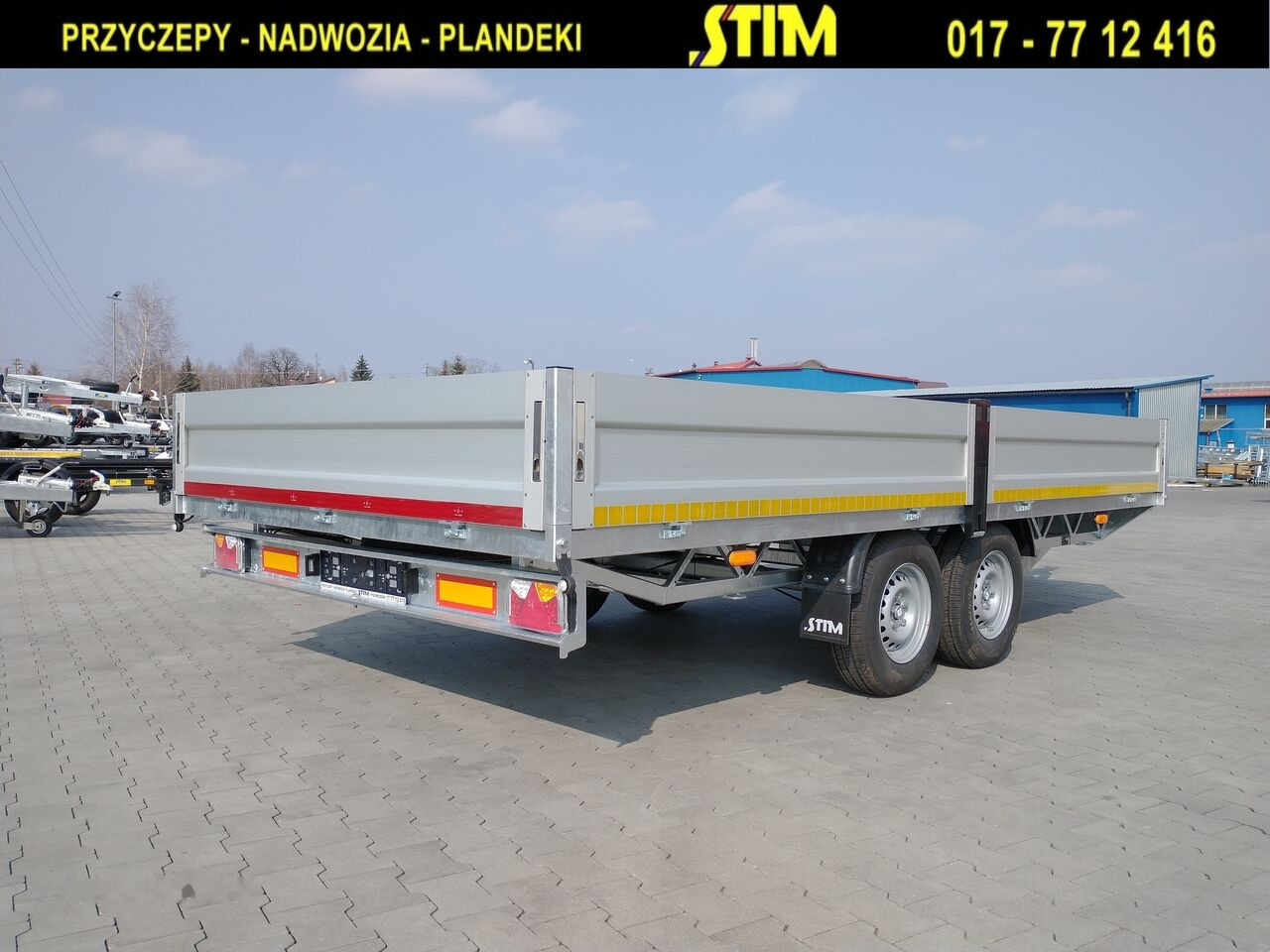

- rear combination lamps with a triangle LED type

- front and rear LED marker lamps

- plastic wheel arches with anti-mud covers

- all lamp connections are soldered

Electrical installation in accordance with the Polish Standard

European approval

12-month warranty

ADDITIONAL EQUIPMENT FOR AN ADDITIONAL CHARGE

- cargo securing straps

- bulb type rear lamps

- entry gangways

- gangway tunnels

- frame + tarpaulin

- props with angular gear
